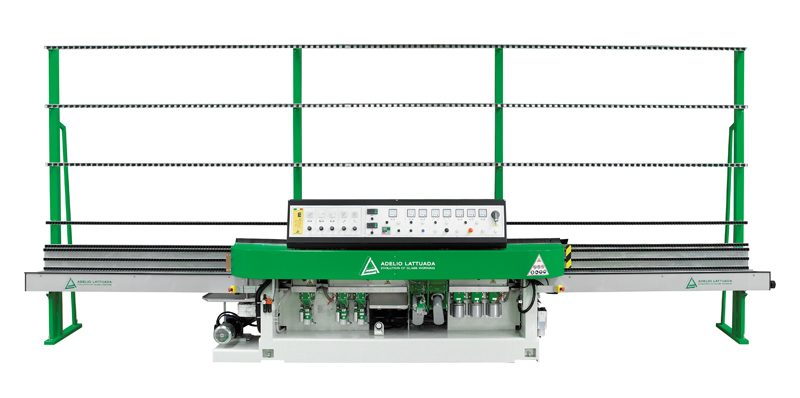

Molatrice rettilinea modello AL 10 M C

Molatrice rettilinea elettronica per l’esecuzione del filo piatto con filetti e lucidatura con ossido di cerio liquido.

Le regolazioni relative a velocità di lavoro e spessore vetro si effettuano mediante dei visualizzatori posti sul pannello comandi. Il bloccaggio del vetro avviene tramite un sistema meccanico. Per evitare l’usura delle parti in movimento, viene montato un impianto di lubrificazione automatico centralizzato. Il trasportatore è formato da tasselli, composti da uno speciale materiale, fissati su catene di precisione. Regolazione automatica delle mole filetto al variare dello spessore vetro. Le mole sono montate sui mandrini a cui viene trasmesso il moto tramite cinghie dentate collegate ai motori. L’intervento delle mole lucidanti è automatico poiché comandato da un PLC. Braccio mobile per la regolazione dell’asportazione sul filo del vetro (max 5 mm). Pannello comandi a bassa tensione (24V). Tutte le parti elettriche sono a norme CE ed internazionali.

Straight-line edging machine mod. AL 10 M C

Electronic straight-line edging machine for the processing of flat edged glass with arrises, polished using liquid cerium oxide. Adjustments of, for example, processing speed and glass thickness are made by means of displays on the control panel. The glass is clamped mechanically. A centralised lubrication system is fitted to prevent wear of the moving parts. The conveyor is composed of a series of pads, made from a special material, mounted on precision chains. The arris wheels are automatically adjusted with changes in glass thickness. The wheels are mounted on spindles which are moved by means of drive belts connected to the motors. Activation of the polishing wheels is automatic, being controlled by a PLC. There is a moving arm allowing adjustment of edge glass removal (max. 5 mm). Low voltage control panel (24V). All the electrical parts comply with EC and international standards.
